Drawer Magnet


Drawer Magnet

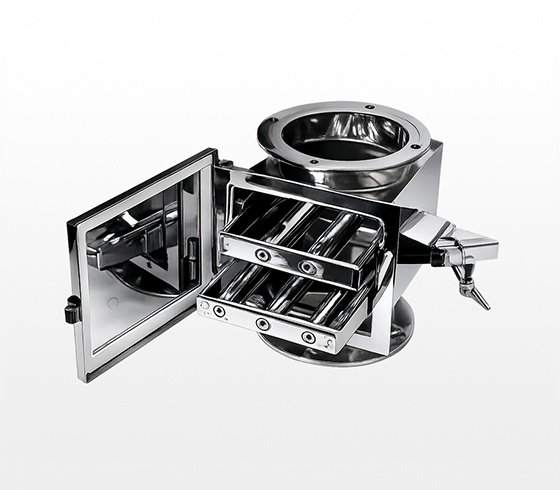

This type of ferrous metal removal unit can be fitted simply in existing pipeline or outlet of various equipment like pulverizer, blenders, & classifier or any other outlet location. In standard type, each unit comprises two permanent magnetic grids mounted one above the other. A system with multiple grids is available for special application. The grids are easily removable for cleaning. The drawer is fitted with flanges at an outlet. As standard, the magnetic rods consisting hard ferrite ceramic magnets or high-intensity rare earth magnet is fitted in a sturdy steel housing. Model with stainless steel grids and housing can be supplied if required.

The drawer magnets are available with either Ferrite magnets or with High Intensity, Rare Earth Nd-Fe-B Magnets.

Drawer Magnets, also known as grate magnets, are a type of magnetic separator designed to remove ferrous metal contaminants from dry and free-flowing products. They consist of a number of magnetic tubes or grids, which are placed in a housing or drawer. As product flows through the housing, it is exposed to the magnetic field of the tubes, which attract and hold any ferrous metal contaminants.

Shree Vishwakarma Magnets is a well-known manufacturer of high-quality drawer magnets in India. Their drawer magnets are designed and built to provide effective separation of ferrous metal contaminants in a wide range of dry and free-flowing products. They are widely used in industries such as food processing, pharmaceuticals, plastics, and chemicals.

Drawer magnets are available in a variety of designs and sizes, including square, rectangular, and round. They can be customized to meet specific customer requirements, such as high-temperature or sanitary applications. The magnetic tubes or grids are made from high-quality magnetic materials, such as rare earth or ceramic magnets, to provide strong magnetic fields and efficient separation.

Overall, the drawer magnets are an essential component in many processing plants, helping to ensure the quality and safety of the final product. They are a cost-effective and reliable solution for removing ferrous metal contaminants from dry and free-flowing products. We have also catered to the needs of various industrial sectors and gained acknowledgement as the reliable supplier, and exporter of Industrial Drawer Magnets. With Shree Vishwakarma Magnets' expertise in magnetic technology and commitment to quality, customers can trust that they will receive the best drawer magnets for their specific needs.

Applications

Plastic Industry

Injection Moulding

Blow Moulding

Plastic Extrusion

Recycling Plastic

Food processing industries

Salient Features

Remove the grate assemblies one at a time.

Multi-stage drawer magnet upto 12 stage is available.

Provides fast drain out of materials left in the magnet body after the shut-off gate is closed.

Specification

Plastic Industry

Injection Moulding

Blow Moulding

Plastic Extrusion

Recycling Plastic

Food processing industries

Remove the grate assemblies one at a time.

Multi-stage drawer magnet upto 12 stage is available.

Provides fast drain out of materials left in the magnet body after the shut-off gate is closed.
