Eddy Current Separator


Eddy Current Separator

Our highly efficient Eddy Current Separator is the most advanced magnetic separators which are commonly used to separate non-ferrous metals from mixed waste and other streams. It purely separate aluminium, copper, brass and other non-ferrous metals from your product stream, municipal solid waste recycling, scrap residue and other recyclables.

The principle of the eddy current separator is fairly straightforward. Basically, a rotor comprised of magnet blocks, either standard ferrite ceramic or the more powerful rare earth magnets depending on an application, are spun at high revolutions to produce an ‘eddy current’. This eddy current reacts with different metals, according to their specific mass and resistivity, creating a repelling force on the charged particle. If a metal is light, yet conductive such as aluminum, it is easily levitated and ejected from the normal flow of the product stream making separation possible. Separation of stainless steel is also possible depending on the grade of material. Particles from material flows can be sorted down to a minimum size of 3/32″ (2mm) in diameter. There is no question that Eddy Current Separators have been a crucial development for the recycling industry.In a world of depleting natural resources, the race is on to find faster, cheaper and more efficient ways of reclaiming and recovering raw materials, as well as improving the purity and reducing the risk of contamination during the processing.

Eddy current separators are very common in the fastest growing market of a beverage can sorting, where they can provide an accurate separation of aluminum cans from waste streams.

One of the more recent and exciting innovations in material separation is the non-ferrous eddy current separator and how it is revolutionizing efforts to reduce waste and damage to the environment by recovering valuable non-ferrous metals from municipal and industrial refuse.

Eddy Current Separator is an advanced magnetic separator used for the separation of non-ferrous metals from the waste streams. Shree Vishwakarma Magnets, a valuable manufacturer, supplier, and exporter based in India, provides high-quality Eddy Current Separators that are designed to handle large volumes of materials in various industries including recycling, mining, and construction.

The Eddy Current Separator works by creating an alternating magnetic field that causes non-ferrous metals to repel away from the conveyor belt, while the remaining materials continue to move forward. This separation method is highly efficient and can effectively separate a range of non-ferrous metals such as aluminum, copper, brass, and zinc from the waste stream. The Eddy Current Separator can be customized to fit the specific requirements of each industry and can be used in combination with other magnetic separators to achieve maximum separation efficiency.

Eddy Current Separator Specifications

Model APPOROXIMATE CAPACITY USABLE BELT WIDTH DRIVE MOTOR H.P. ROTOR MOTOR H.P.
JECS-20 4 TONS/HR. 20” 1.5 H.P 3 H.P
JECS-30 6 TONS/HR. 30” 2.0 H.P 5 H.P
JECS-40 8 TONS/HR. 40” 3.0 H.P 7.5 H.P
JECS-48 12 TONS/HR. 48” 3.0 H.P 7.5 H.P
JECS-60 15 TONS/HR. 60” 3.0 H.P 10 H.P

Salient Features

Solid structure with anti vibration pads.

No loss of valuable material.

Low maintenance.

Protected other recycling equipment.

High yields of non-ferrous metals recovery.

Applications

98% recovery of aluminum cans from commingled recyclables.

Stainless steel, copper, aluminum, brass from shredder residue and fluff.

Non-ferrous metal recovery in refuse streams and ash streams in Waste-to-Energy facilities.

Separation of non-ferrous chips.

Aluminum scrap recovery in foundry sand reclamation.

Glass cullet recycling.

Wood waste processing.

Aluminium extrusion recycling.

Our Eddy Current Separator is used for

Eddy Current Separator is used for Aluminium Scrap Recycling

Eddy Current Separator is used for Rubber Scrap Recycling

Eddy Current Separator is used for E-waste Recycling

Eddy Current Separator is used for MSW (Municipal Solid Waste)

Eddy Current Separator is used for Glass Collect Recycling

Eddy Current Separator is used for Aluminium Scrap Recycling

Eddy Current Separator is used for Pet Flakes Recycling

Eddy Current Separator is used for Wire Scrap Recycling

Eddy Current Separator is used for Plastic Waste Recycling

Eddy Current Separator is used for PVC Scrap Recycling

Eddy Current Separator is used for Zorba

Specification

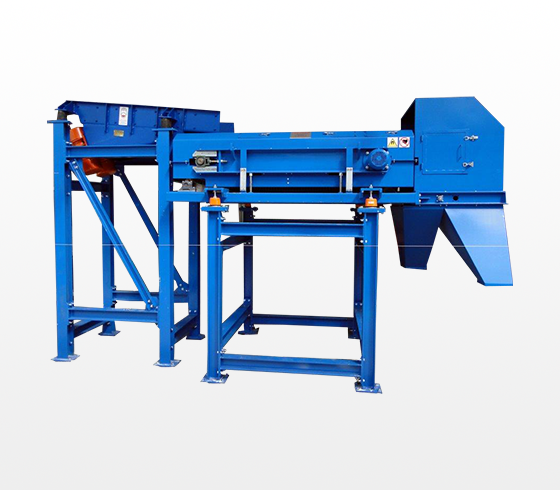

In eddy current separator there is a short belt of conveyors that has its drive located at the return end and a high-speed magnetic rotor system installed at the discharge end. A magnetic rotor, which is positioned within a separately rotating non-metallic drum, revolves high speed during operation whilst the outer drum cover rotates at the speed of the eddy currents belt conveyor.

While rotor spins at these high speeds at that time electric current is induced into conducting metals. The induced electric current produces a magnetic field, which opposed the field created by the rotor, repelling the conducting metals over a pre-positioned splitter plate. The remaining materials such as plastics, glass, and other dry recyclables will simply free-fall over the rotor, separating them from the repelled metals.

The eddy current effect appears if non-ferrous conductors of electricity are exposed to a magnetic alternating field. The eddy currents, in turn, generate magnetic fields whose flux are opposed to the fields generating them, thus causing repulsive forces which discharge nonferrous metals out of the material flow.

Model APPOROXIMATE CAPACITY USABLE BELT WIDTH DRIVE MOTOR H.P. ROTOR MOTOR H.P.
JECS-20 4 TONS/HR. 20” 1.5 H.P 3 H.P
JECS-30 6 TONS/HR. 30” 2.0 H.P 5 H.P
JECS-40 8 TONS/HR. 40” 3.0 H.P 7.5 H.P
JECS-48 12 TONS/HR. 48” 3.0 H.P 7.5 H.P
JECS-60 15 TONS/HR. 60” 3.0 H.P 10 H.P

Solid structure with anti vibration pads.

No loss of valuable material.

Low maintenance.

Protected other recycling equipment.

High yields of non-ferrous metals recovery.

98% recovery of aluminum cans from commingled recyclables.

Stainless steel, copper, aluminum, brass from shredder residue and fluff.

Non-ferrous metal recovery in refuse streams and ash streams in Waste-to-Energy facilities.

Separation of non-ferrous chips.

Aluminum scrap recovery in foundry sand reclamation.

Glass cullet recycling.

Wood waste processing.

Aluminium extrusion recycling.
