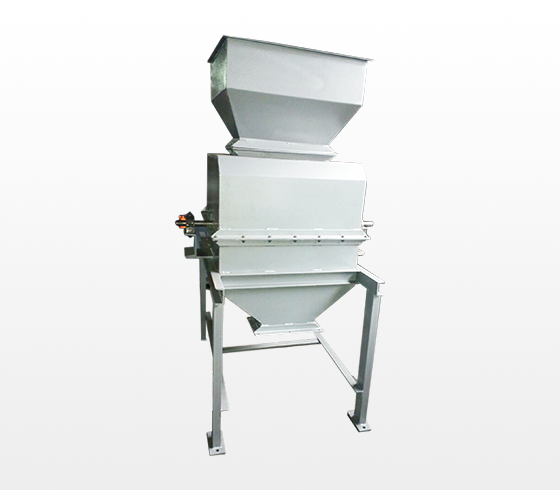

Inline Drum Magnetic Separator


Inline Drum Magnetic Separator

Magnetic Drum Separator are of self-cleaning type and provide continuous removal of ferrous contamination from a wide range of free-flowing bulk and granular materials in high-volume applications.

Drums can be ordered with or without housing.

Magnetic Drum Separator system is a complete machine with Stainless Steel 304 / 316

Housing & Drive system. Only drum separator unit can also be supplied.

The Drum Separators are available in two types:

High Intensity – (Ndfeb Magnet – 5500 gauss), for Operating Temperature of 80?C(Max.)

Low Intensity - (Ferrite Magnet - 2500 gauss), for Operating Temperature of 250?C(Max.)

Ferrous fine particles, nuts, bolts, pins, nails and other tramp metal from free-flowing granular material can be arrested effectively.

When material flows onto the drum, a stationary magnetic assembly inside the unit's shell captures tramp metal and holds it securely to the drum's stainless steel surface. With contaminants removed, the good product falls freely to a discharge point. As the drum rotates, cleats sweep the ferrous debris through and out of the magnetic field. The tramp metal is discharged separately, creating continuous self-cleaning separation.

Inline Drum Magnetic Separator is a highly efficient and versatile magnetic separator designed for continuous separation of magnetic and non-magnetic particles from a mixture. The inline configuration of this separator enables it to be installed directly in a pipeline, eliminating the need for a separate discharge chute. It is ideal for applications in the food processing, pharmaceutical, and chemical industries where continuous and high-throughput separation is required.

The Inline Drum Magnetic Separator is designed with powerful permanent magnets that generate high magnetic field gradients to capture even weakly magnetic particles. The captured particles are carried by the rotating drum and discharged at the opposite end of the separator. The non-magnetic particles pass through the drum and are discharged through the outlet.

Shree Vishwakarma Magnets is a preeminent manufacturer, supplier, and exporter of Inline Drum Magnetic Separators in India. They offer a wide range of models to suit various applications, with customizable features to meet specific customer requirements.

Specification

Magnetic Drums have the following features


Designed for continuous separation and self cleaning. Ideal for high-flow, heavy-contamination applications. It comes with Stainless steel drum and mild steel or stainless steel housings

Maximum Recovery of Ferrous Metals

Minimum Maintenance

They require minimum space and are simple to operate.

They are flexible enough to be applied for various purposes

Helps in removing ferrous particles from any non ferrous powder and granules

Ideal for plastic, food, fertilizer, pharmaceutical, chemical, glass and continuous process plants

Provide utmost protection to crushers, grinders, pulverizes, and allied equipment

Can be used for mining and ore dressing industry

Eliminate fire hazards and explosions in plants dealing with explosive material.

Save money, time and labour by reducing break-down time and improving quality

The magnetic drum separator consists of a rotating drum and stationary drum magnet designed as per the specific needs of the customer. The Drum separator is supplied with drive system and SS 304/316 housing along with feed regulating valve.

The following Information is required


Type of material from which Iron is to be separated. (Sticky, Granular, Free flowing, Lumps etc)

Size and level/percentage of contamination

Flow rate of material

Size/Density of the material particle

The Magnetic Drum filters out iron contamination and hence is widely used in all the processing industry for the separation of iron contamination from


Minerals and Chemicals

Food and Flour

Plastics

Grains

Sand

Fertilizers

Abrasives

Glass

Slag

Ores

Rock

Refractory
