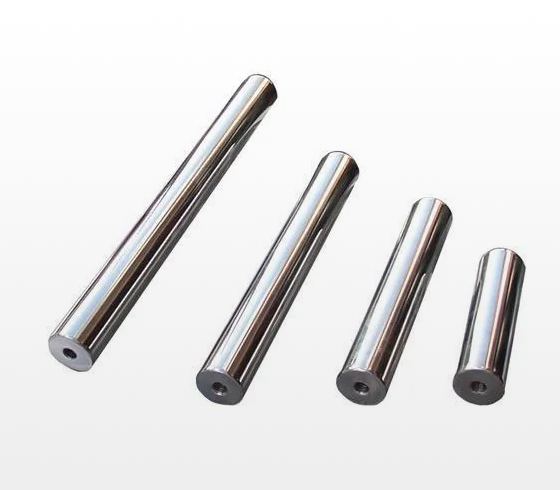

Magnetic Rod


Magnetic Rod

Magnetic Rod is a product offered by Shree Vishwakarma Magnets, a trusted manufacturer, supplier, and exporter of magnetic solutions in India. The magnetic rod is designed to be used in conveyor systems to capture ferrous contaminants and impurities from the conveyed material. The magnetic rod consists of a stainless steel tube and powerful magnetic rods, which attract and hold the ferrous particles. The rods are made up of high-intensity rare earth magnets, which provide strong magnetic force for efficient separation.

The magnetic rod can be customized to fit the specific requirements of the customer's conveyor system, including the length and diameter of the stainless steel tube and the number and strength of the magnetic rods. The installation of the magnetic rod is easy and can be done at any point on the conveyor system. The use of a magnetic rod for conveyor systems can increase the efficiency of the production process by reducing contamination and protecting downstream equipment from damage.

Industries Using Magnetic Rod

Plastic

Food Products. (Sugar, Coffee, Tea, Grains, Pulses, Flour, Spices, Milk etc.)

Pharmaceutical

Chemical

Ceramic

Colors / Paints

Pigments

Ink

Refractory

General Information

Magnetic Rods in Diameter other that 27mm also available.

Tapping M8 x 15 mm deep can be provided at one end OR both end as desired.

Can be supplied is SS 316 also.

Easy clean rods are available.

Long heavy duty rods for chain type coolant systems are available.

Customized rods designs available.

Low intensity magnetic rods have Gauss values 2,500 and High Intensity Magnetic Rods have a Gauss value of 10,500.

Rods with intermediate Gauss values are also available.

Medium and High intensity magnetic Rods with Maximum operating temperature of 200?C available.
