Drum Type Magnetic Separator


Drum Type Magnetic Separator

Drum type magnetic separator is an equipment used to separate ferrous material from non-ferrous material in various industries. The equipment consists of a stationary magnet, a rotating drum, and a conveyor belt that carries the material to be separated over the drum. As the material passes over the drum, the ferrous particles are attracted to the magnetic field and are collected on the drum's surface, while the non-ferrous particles continue to move on the conveyor belt.

Shree Vishwakarma Magnets is a distinguished manufacturer, supplier, and exporter of drum type magnetic separators in India. Their drum type magnetic separators are widely used in industries such as mining, recycling, food processing, and pharmaceuticals. The company offers a wide range of drum type magnetic separators with different magnetic strengths and sizes to suit various applications.

Their drum type magnetic separators are designed for easy installation and maintenance, ensuring high efficiency and reliability. With years of experience in the industry, Shree Vishwakarma Magnets is committed to providing quality products and services to their clients.


Our Permanent Drum type separator which is most and widely used separating tramp iron from nonmagnetic material processed in large quantity, for the purity of end products, recovery of metal having commercial value and protection of processing plant and machinery. Single Drum Type Magnetic Separator is widely used in all the processing industry for separation of iron contamination from minerals ,chemicals, food, grains, sand, plastic fertilizers, slag,ores and in many more products.

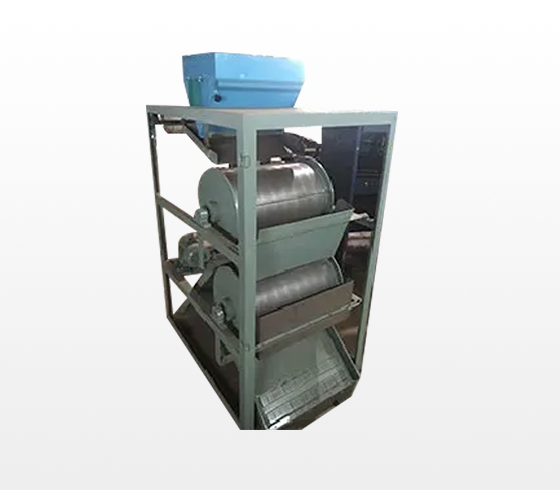

Double Drum Type Magnetic Separators is mostly used for his functionality of highest purity. The material is going to pass through the magnet twice in Double Drum type machine. Mainly it is used for separation of iron contamination from Minerals, Chemicals, Refractory and many other products. In Double Drum Type Magnetic Separators high power permanent magnetic plate is provided at a material outlet. Modern an Isotropic Permanent Magnets are used having highest coercivity and everlasting magnetic strength. Machines are available with vibrating material inlet Hopper and totally enclosed design to avoid dusting and pollution. Online fitting design is also available as per requirement.

Permanent Magnetic Drum consists of a stationary permanent magnetic assembly having a uniform and everlasting magnetic field across the entire width of the drum, which is more effective over approximately half the drum circumferences as shown in above fig.

Drum shell is made up of nonmagnetic stainless steel which revolves around the magnetic field. As the material fed evenly from the chute falls over the drum, powerful magnetic, field attract & holds ferrous particles to the revolving shell. As the revolving shell carries the iron particles through the stationary magnetic field., the nonmagnetic material falls freely from the shell while ferrous particles are firmly held until carried beyond divider and out of the magnetic field.

The biggest strength of the permanent magnetic drum is guaranteed to be greater than a corresponding electromagnetic drum. Permanent magnets used are everlasting magnets and its strength does not diminish during normal use and can be used for a long period of time after the installation.

Drum consists of high coercivity modern anisotropic permanent magnets.

Strong and rugged construction.

Automatic separation of iron impurities.

Completely enclosed design to avoid dusting and pollution.

Ther Permanent Drum Separators are available in standard drum diameters of 300mm, 400mm, 450mm, 500mm, 600mm, 900mm, 1200mm and Drum width range from 300mm to 2000mm. There are also many others sizes which can be made as per your requirement. The larger the diameter and width of the drum the greater is the volume of material which can be handled.

Model no. No. of Drums Capacity tones per Hours Drum Size
Dia mm Length mm
J-651-SDS 1 1.0 300 450
J-651-DDS 2 1.0 300 450
J-652-SDS 1 1.5 400 500
J-652-DDS 2 1.5 400 500
J-653-DDS 2 2.0 400 600
J-654-SDS 1 3.0 400 750
J-654-DDS 2 3.0 400 750
J-655-SDS 1 5.0 450 850
J-655-DDS 2 5.0 450 850

Magnetic separators are offered with two different type of magnets.

The magnetic separator with ceramic magnet are useful for the application where free and larger iron particles are to be separated. The average magnetic intensity on the magnetic drum surface will be 1500-2000 Gauss.

The magnetic separator with high intensity Rare Earth Nd-Fe-B (Neodymium- Iron- Boron) magnets are useful for removing magnetic contamination with low magnetic properties and fine iron particles are to be separated. The average magnetic intensity on the drum surface will be 3500 – 5500 Gauss.
