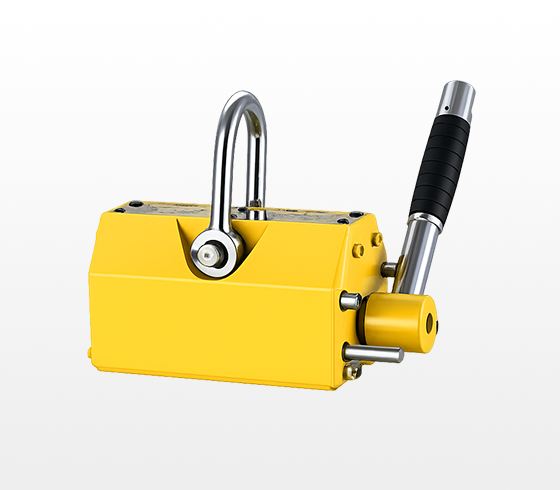

Permanent Magnetic Lifter


Permanent Magnetic Lifter

Permanent Magnetic Lifters are devices designed to lift and move heavy ferrous objects with ease and safety. They work on the principle of using permanent magnets to create a strong magnetic field, which attracts and holds the ferrous material securely. These lifters are ideal for use in various industries, including construction, manufacturing, and engineering, among others.

Shree Vishwakarma Magnets is a preeminent manufacturer, supplier, and exporter of high-quality Permanent Magnetic Lifters in India. Their lifters are made using high-grade materials and are designed to meet international safety standards. They offer a range of lifters with different lifting capacities to suit various applications.

The lifters are easy to operate and require minimal maintenance, making them a cost-effective solution for lifting heavy ferrous objects. They are also designed with safety features to prevent accidents and ensure the safety of workers. Overall, Permanent Magnetic Lifters are an efficient and safe solution for handling heavy ferrous objects, and Shree Vishwakarma Magnets offers reliable and high-quality lifters to meet various lifting requirements.

Available Models

PML's range of Lifting Devices range from 100kg to 5 Ton lifting capacity.

Type Rated Lifting Capacity (Kg) Max Pulling Power (Kg) L (mm) B (mm) H (mm) R (mm) Dead Weight (Kg)
PML - 100 100 300 92 65 67 107 3
PML-200 200 600 163 92 90 195 4
PML - 400 400 1200 162 92 91 207 10
PML-600 600 1800 236 121 117 276 20
PML - 1000 1000 3000 233 122 118 235 35
PML-2000 2000 5000 270 180 164 285 65
PML - 3000 3000 7500 378 234 212 370 82
PML-5000 5000 12500 600 270 261 450 200

Features

Zero electricity required

Forged hook for high mechanical strength and durability

Precision machined assembly block in single piece to enhance efficiency

Designed for safety and light weight

Fool proof locking system with an easy to use "on" and "off" lever

3 times rated capacity factor of safety to meet the safety standards as per international standards for under the hook devices

Test certificate for safety factor from government approved third party

No Maintenance and Operating cost

No damage to the work piece being lifted

Very Compact

Benefits

Lifting Magnets use space more effectively. Eliminates the need to gauge and increase stacking height

As less as one operator can move large and heavy work piece safely and easily using Magnetic Lifters

Lifting Magnets save labour and time - improves productivity

Construction

Permanent Magnet Lifters have strong magnetic field path produced by NdFeB Magnetic materials. "On" and "Off" of the magnetic path is controlled by turning the lever manually. There are shackles on the top of Magnetic Lifter for lifting.
